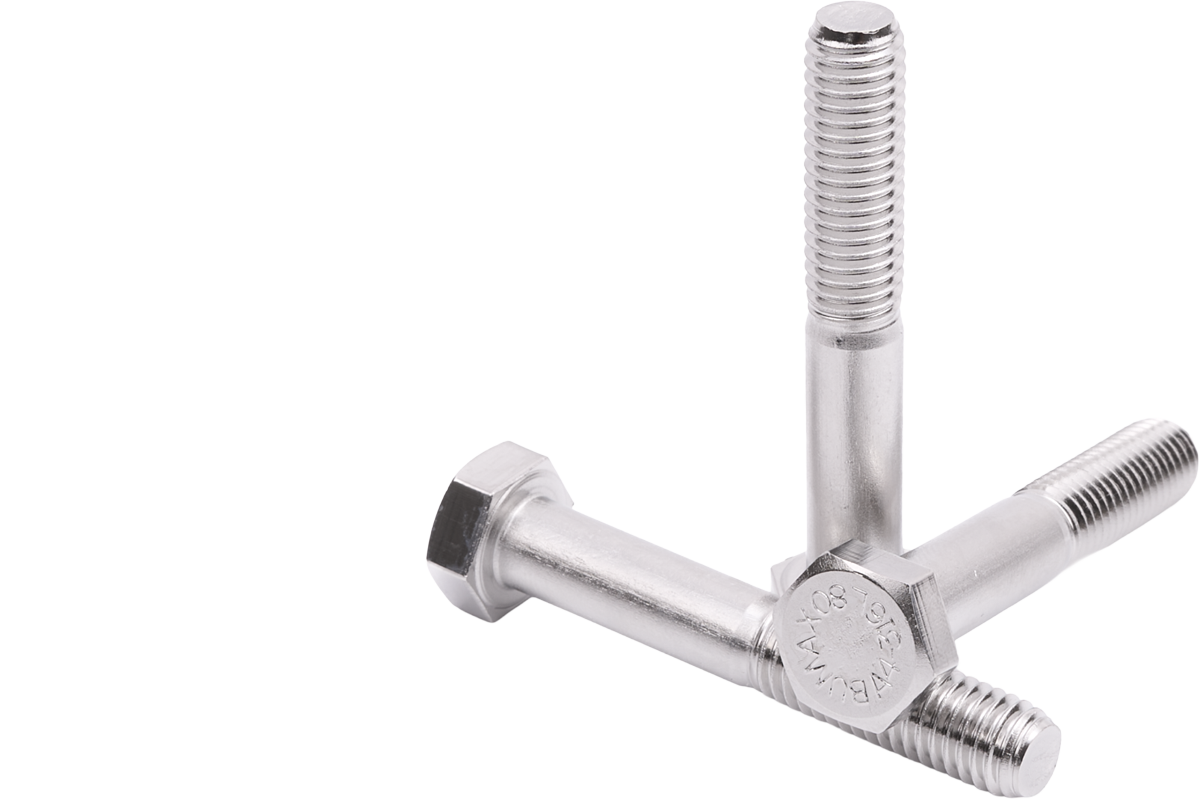

Hexagon head bolt and screw





ISO 4014 Bumax 88

ISO 4014 BUMAX® 88

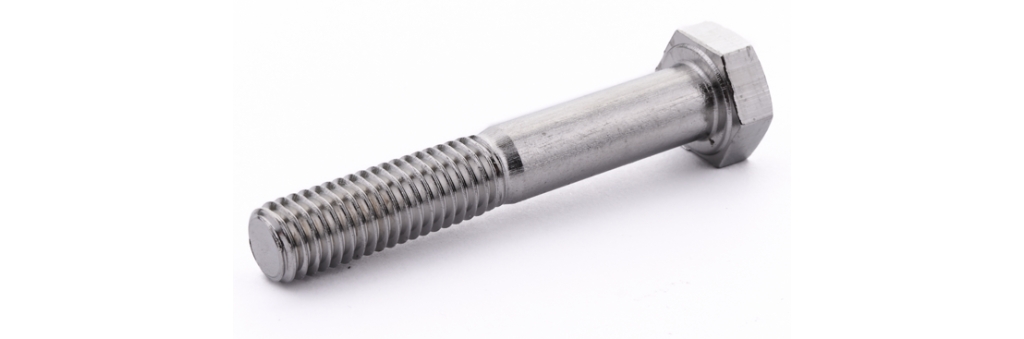

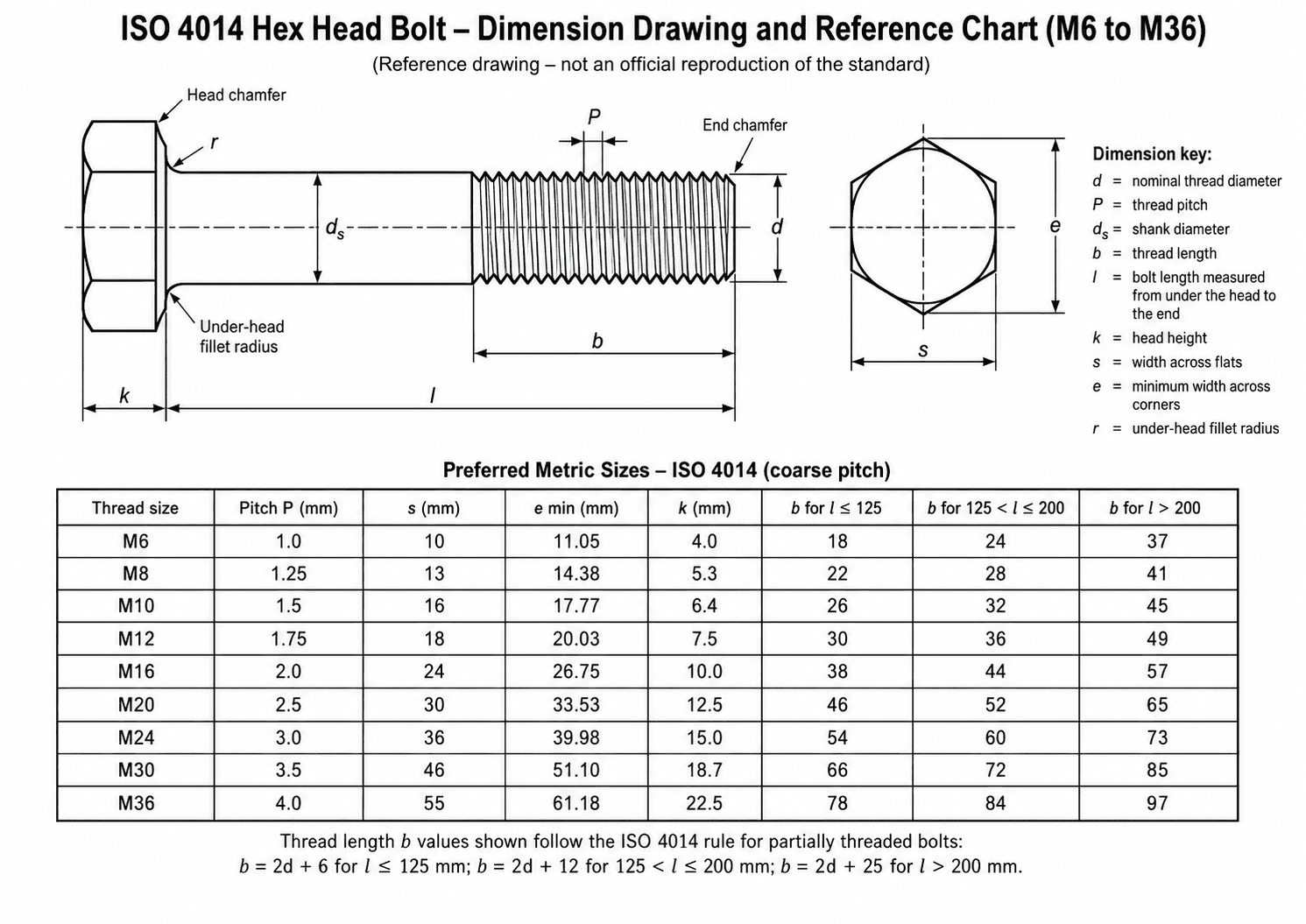

Hexagon Head Cap screw ISO 4014 (DIN 931)

Article no: 4014A4XXLLL88                                           X= Thread Diameter (mm) L= Length (mm)

Material: Stainless Steel EN ISO 1.4432

Grade Strength, min TS/YS MPa Steel Standard Fastener Standard Microstructure PRE
BUMAX 88 800/640 EN 1.4432 (316L Hi Mo) ISO 3506 A4 Austenitic 27



Chemical composition weight % C Si P S Cr Mo Ni Cu
Nominal max 0,03 max 0,8 max 0,04 max 0,015 min 16,5 min  2,5 min  11 max  0,6

4014BUMAX88

ISO 4014 Bumax 109

ISO 4014 BUMAX® 109

Hexagon Head Cap screw ISO 4014 (DIN 931)

Article no: 4014A4XXLLL109                                           X= Thread Diameter (mm) L= Length (mm)

Material: Stainless Steel EN ISO 1.4432

Grade Strength, min TS/YS MPa Steel Standard Fastener Standard Microstructure PRE
BUMAX 88 900/1000 EN 1.4432 (316L Hi Mo) ISO 3506 A4 Austenitic 27



Chemical composition weight % C Si P S Cr Mo Ni Cu
max 0,03 max 0,8 max0,04 max0,015 min16,5 min 2,5 min 11 max 0,6



4014BUMAX109

ISO 4014 Bumax SDX 109

ISO 4014 BUMAX® SDX 109

Hexagon Head Cap screw ISO 4014 (DIN 931)

Article no: 4014D8XXLLL109                                           X= Thread Diameter (mm) L= Length (mm)

Material: Stainless Steel EN ISO 1.4410 Super Duplex

Grade Strength, min TS/YS MPa Steel Standard Fastener Standard Microstructure

PRE

BUMAX SDX 109 900/1000 EN 1.4410 ISO 3506 Austenite/Ferrite 42



Chemical composition weight % C Si P S Cr N Ni Mo
Nominal max 0,03 max 0,8 max 0,035 max 0,015 25  0,3 7 4
4014BUMAXSDX

ISO 4017 Bumax 88

ISO 4017 BUMAX® 88

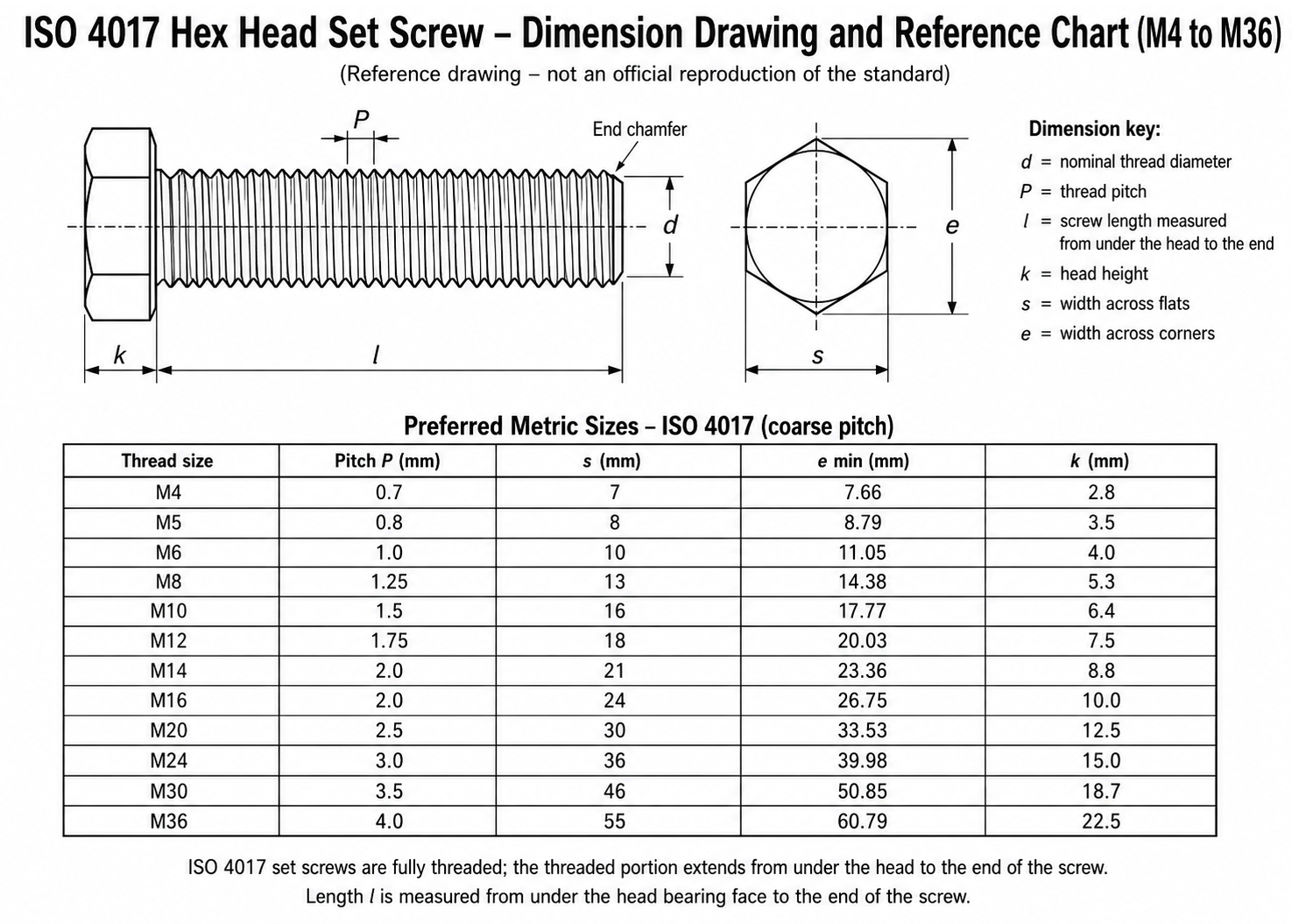

Hexagon Head Cap screw ISO 4017 (DIN 933)

Article no: 4017A4XXLLL88                                           X= Thread Diameter (mm) L= Length (mm)

Material: Stainless Steel EN ISO 1.4432

Grade Strength, min TS/YS MPa Steel Standard Fastener Standard Microstructure PRE
BUMAX 88 640/800 EN 1.4432 (316L Hi Mo) ISO 3506 A4 Austenitic 27



Chemical composition weight % C Si P S Cr Mo Ni Cu
max 0,03 max 0,8 max 0,04 max0,015 min16,5 min 2,5 min 11 max 0,6
4017BUMAX88

ISO 4017 BUMAX 109

ISO 4017 BUMAX® 109

Hexagon Head Cap screw ISO 4017 (DIN 933)

Article no: 4017A4XXLLL109                                           X= Thread Diameter (mm) L= Length (mm)

Material: Stainless Steel EN ISO 1.4432

Grade Strength, min TS/YS MPa Steel Standard Fastener Standard Microstructure PRE
BUMAX 88 900/1000 EN 1.4432 (316L Hi Mo) ISO 3506 A4 Austenitic 27



Chemical composition weight % C Si P S Cr Mo Ni Cu
max 0,03 max 0,8 max0,04 max0,015 min16,5 min 2,5 min 11 max 0,6

4017BUMAX109

ISO 4017 BUMAX SDX 109

ISO 4017 BUMAX® SDX 109

Hexagon Head Cap screw ISO 4017 (DIN 933)

Article no: 4017D8XXLLL109                                           X= Thread Diameter (mm) L= Length (mm)

Material: Stainless Steel EN ISO 1.4410 Super Duplex

Grade Strength, min TS/YS MPa Steel Standard Fastener Standard Microstructure PRE
BUMAX SDX 109 900/1000 EN 1.4410 ISO 3506 Austenitic-Ferritic 42



Chemical composition weight % C Si P S Cr N Ni Mo
Nominal max 0,03 max 0,8 max 0,035 max 0,015 25  0,3 7 4
4017BUMAXSDX

ANSI B 18.2.1 – BUMAX 88

ANSI.B.18.2.1
